PAS 24 - Secured By Design Steel Door

Home / Our Doors / Steel Security Doors / PAS 24 - Secured By Design Steel Door
Securidor

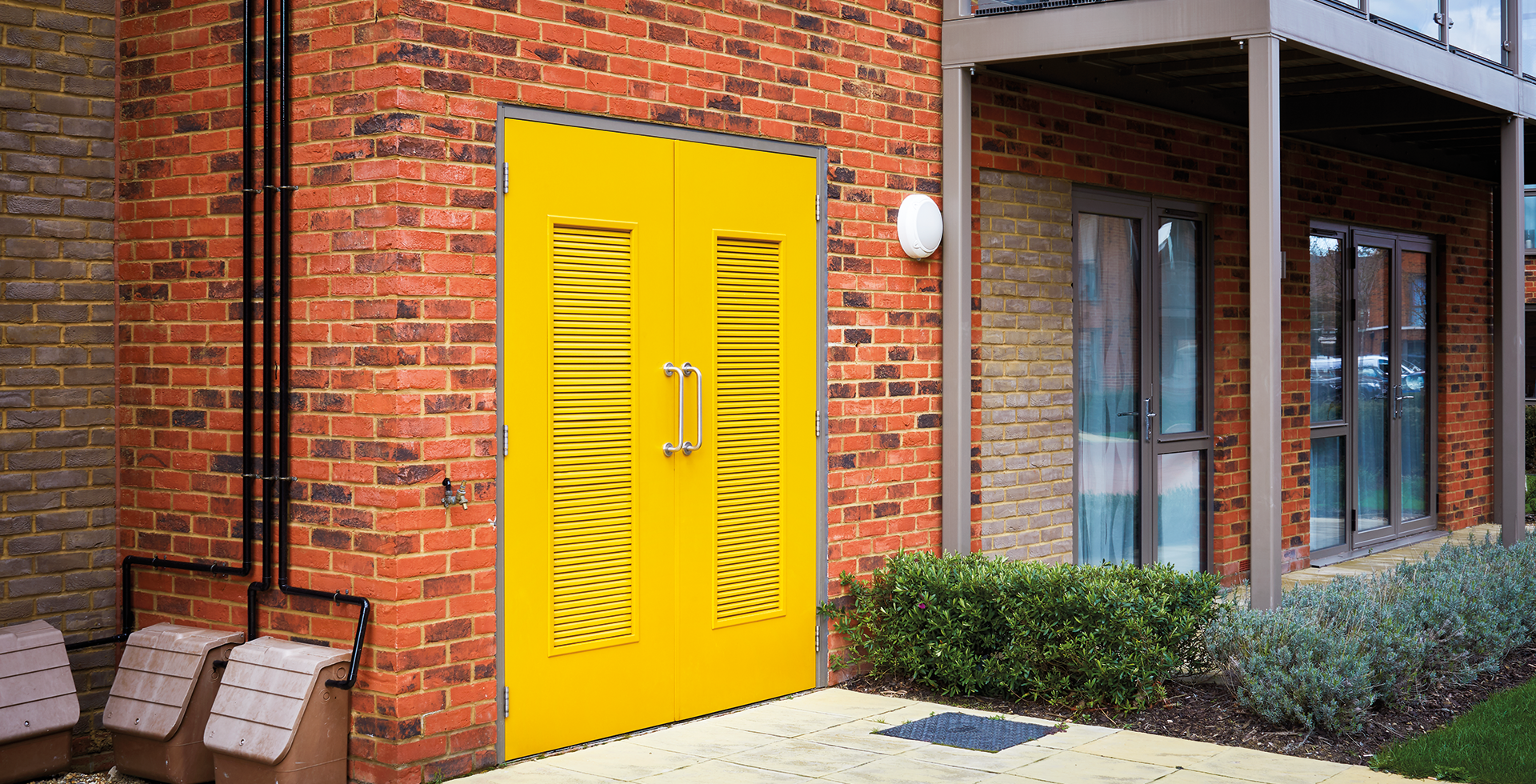

Strongdor Secured by Design door-sets are certified to comply with the standards set by the National Police initiative. Aiming to improve the security of buildings and their immediate surroundings and provide safe places to live, work, shop and visit.

These SBD steel door-sets offer greater protection to bin stores, plant rooms and access to communal areas and can be used on both residential and commercial developments that require the peace of mind that comes with Secured by Design compliance.

  • Manual or Electric Locking
  • Rockwool or Honeycomb Core
  • Up to 4.5m wide with solid of glazed side panels
Unique Range Features

10-14 day lead time
Fast quotes
Easy fit doors
Steel door expert advice

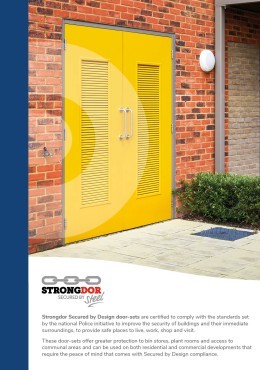

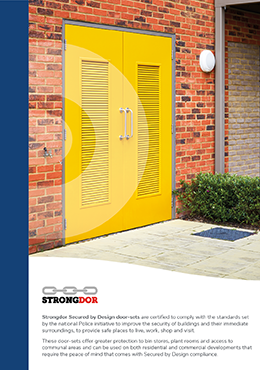

Download Tech Specs
Iso
Sbd logo
Qmarkjpg

Product Features

Height Icon
Height

Single - up to 2.24m
Double - up to 2.24m

Width Icon
Width

Single - up to 1.3m
Double - up to 2.49m

I5
Leaf Thickness

44mm deep leaf skin

I7
Air permeability

EN1026:2000 to class 4 – 600Pa (113kmh) test pressure

I9
Water tightness

EN1027:2000 to 150Pa for outward opening and 100Pa for inward

I10
Fire resistance

Upgrade to Internal BS EN 1634:1 2008
Up to 240 minutes

I6
Resistance to wind load

EN12211:2000 to 1200Pa (Class A3) 98 mph

I8
Louvres

Available - air flow reduced due to security design

I7
Weather tightness

BS 6375: Part 1: 2009 (test to EN1026:2000, EN1027:2000, EN12211:2000) to 1200 exposure rating

Further information

Features
Drawings
Videos
Downloads

Typical frame
Steel / galvaneal head and jambs
Minimum size 1.6 x 104 x 59mm
Single type rebate size 48 x 16mm

Door Leaf
Core 42mm thick - Rockwool or honeycomb infill
Facings - 1.2mm thick -Steel/Galvaneal
Single type rebate size 44 x 15mm
Dutch fold joints
Powder-coated finish

Threshold
AM3 - Inward opening - 114 x 25mm
AM5 - Outward opening - 114 x 25mm

AM3 Threshold inward

View File

AM5 Threshold outward

View File

Glazed vision panel cross section

View File
Single Door Installation

Single Door Installation

This video contains detailed, step-by-step instructions for the safe installation of a Strongdor Steeldor single door-set. Please pay particular attention to the safety instructions.

Double Door Installation

Double Door Installation

This video contains detailed, step-by-step instructions for the safe installation of a Strongdor Steeldor double door-set. Please pay particular attention to the safety instructions.

Touching Up Paintwork

Touching up Paintwork

A demonstration of how to sue the touch up kit supplied with your steel door-set.

Trimming Expander Panels

Trimming the Expander Panels

Instructions on how to trim the side expander panels, for when the aperture is too tight.

Standard Colours

Standard Colours & Coatings

View File
Installationf 33

Door Fitting Guide

View File
