Thermal and Fire Rated Steel Door

Home / Our Doors / Steel Doors / Thermal and Fire Rated Steel Door
Climador Logo Colour

Climador has an exceptionally low U-Value of up to 1.4 W/m K and has been added to the Strongdor range to address the growing demand for thermally proficient, insulated steel doors.

Made from galvanised sheet steel, Climador comes in double or single leaf configuration and is ideally suited to internal or external applications for commercial, industrial, public or residential projects.

CE marked to EN16034 external fire rating.

Climador seamless steel doors can be thermally-rated and fire-rated and available as single or double-leaf door-sets for internal or external use in commercial, industrial, residential or hospital applications. Glazed leafs are available as an option and door can be supplied with or without a threshold.

  • OVER 150 COLOURS AS STANDARD
  • TWO HINGES AS STANDARD
  • CE marked to EN16034 & EN14351-1
Unique Range Features

Steel door expert advice
Trustpilot rated Excellent
1 year warranty

Download Tech Specs
Iso
C e logo
Dhfjpg

Product Features

Height Icon
Height

Single - 2.5m
Double - 2.5m

Width Icon
Width

Single - 1.3m
Double - 2.6m

I5
Leaf thickness

External 64mm
Fire-rated 64mm

I7
Air permeability

External Class 1
Fire-rated N/A

I9
Water tightness

External 4B
Fire-rated N/A

I6
Fire resistance

External and Internal
Fire-rating El: 30, 60

I8
Resistance to wind load

Performance:No Fire Rating
P3 PN-EN 12211:2001 - class C3
Class P1,P2 - PN-EN 12211:2001 - class 4B

I10
Thermal transmittance

Single - 1.4/(m2.K)
Double - 1.7/(m2.K

Further information

Features
Drawings
Downloads

Frames
Door frame made from powder coated steel sections - thickness 2.0mm.

Leaf
Galvanized steel sheet door leaf with polyester or powder coating - thickness 0.8 - 1.5mm.
Leaf thickness 64mm
External and fire-rated 64mm

Door Ironmongery
Stainless steel handle
Mortice lock

Finish
Supplied inclusive of a powder-coated finish in a standard colour. Full range of RAL and BS colours available.

Seals
Fitted with door sill and drip cap (for external doors) as standard.

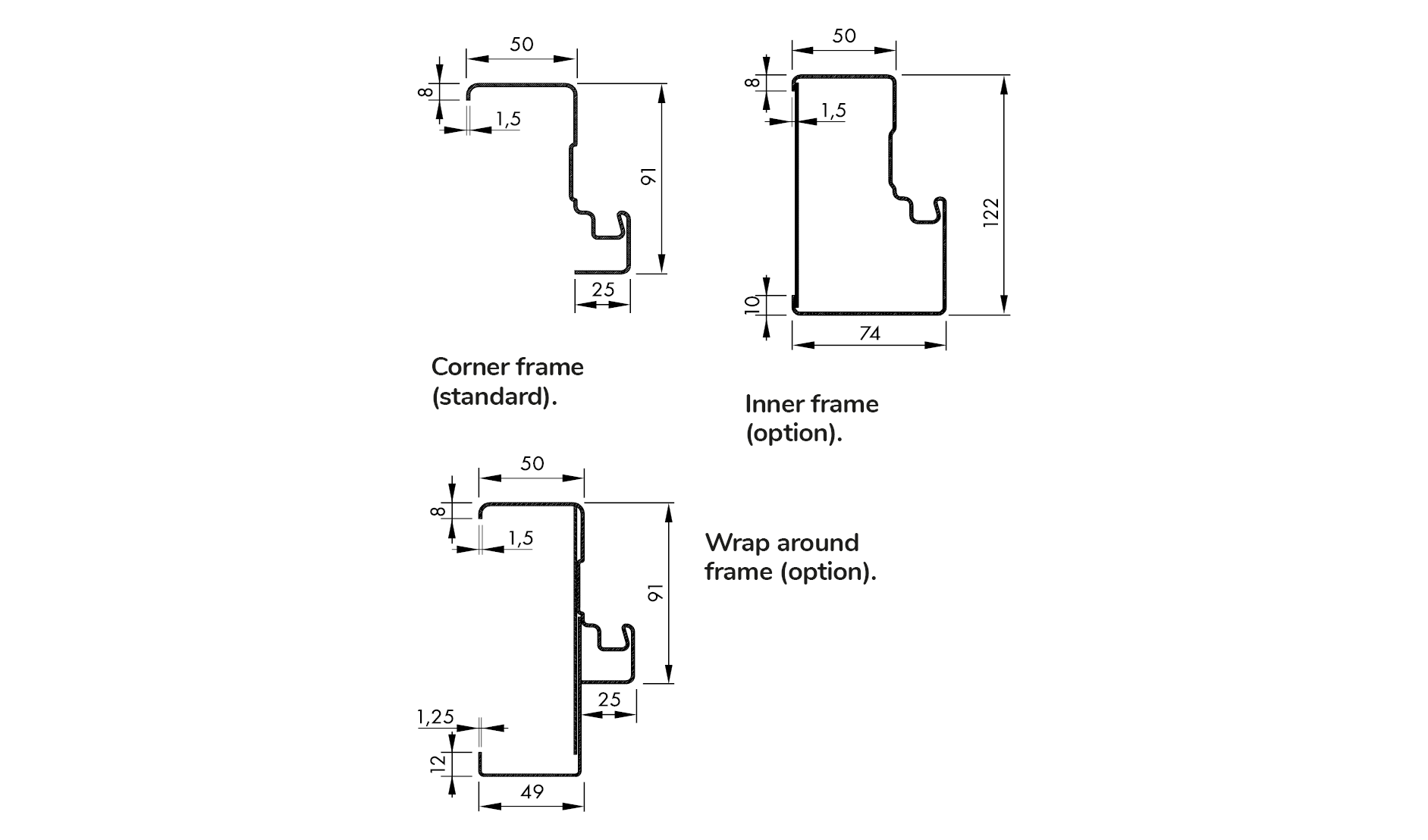

Climador Frame Options

View File

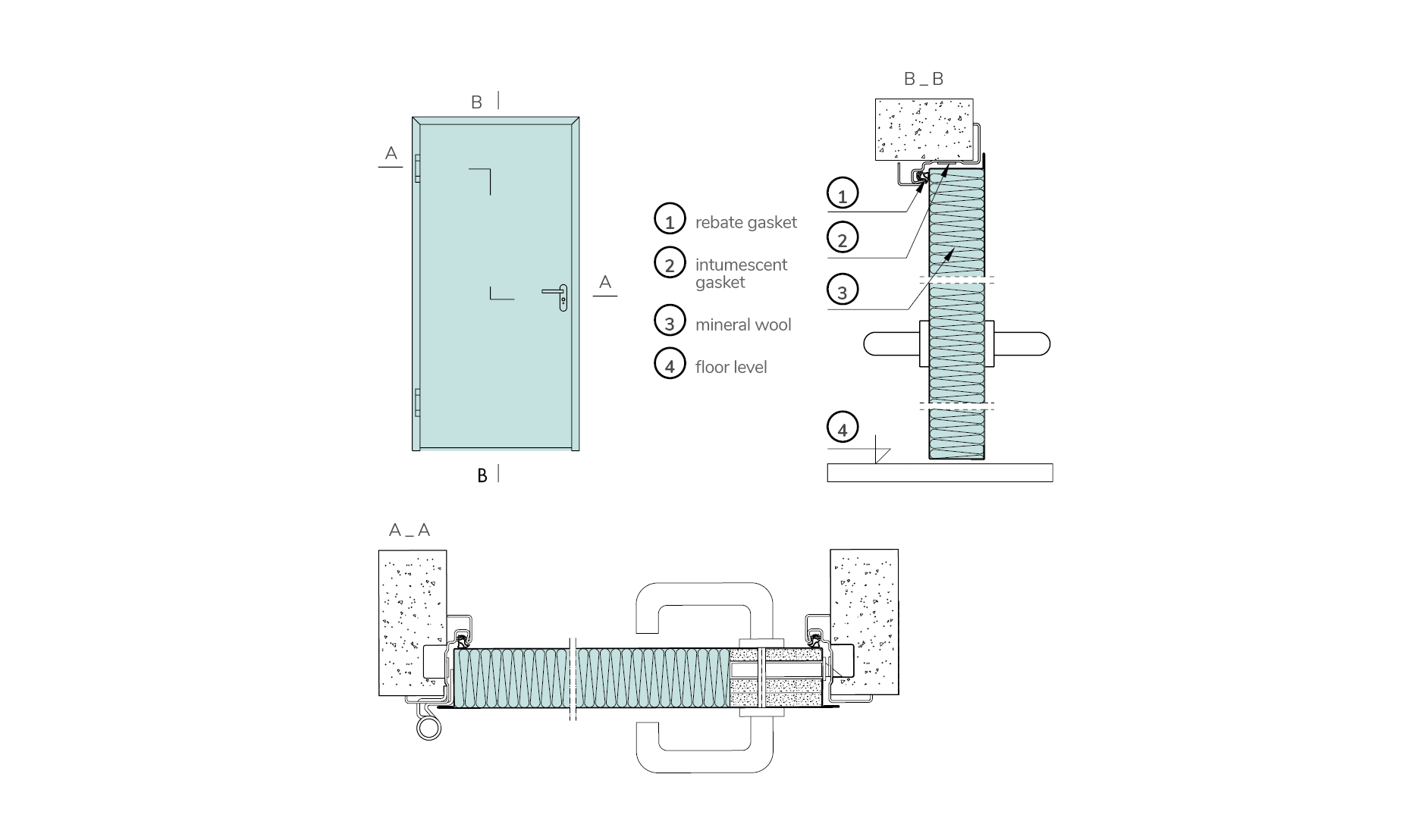

Climador Frame Cross Section

View File
Strongdorfiredorinternaltechspecthumbnail23

Firedor Internal - Emergency Exits and Personnel Doors

View File

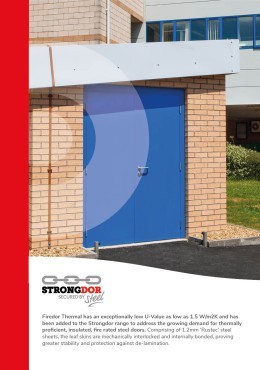

Strongdorclimadortechspecthumbnail23

Climador

View File
Strongdorcolouroptions23

Standard Colours & Coatings

View File

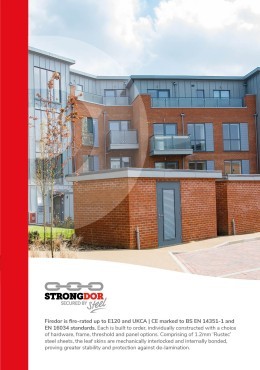

Strongdorfiredorexternaltechspecthumbnail23

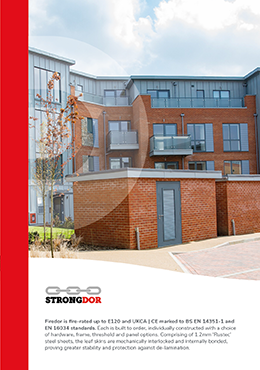

Firedor External - Emergency Exits and Personnel Doors

View File
