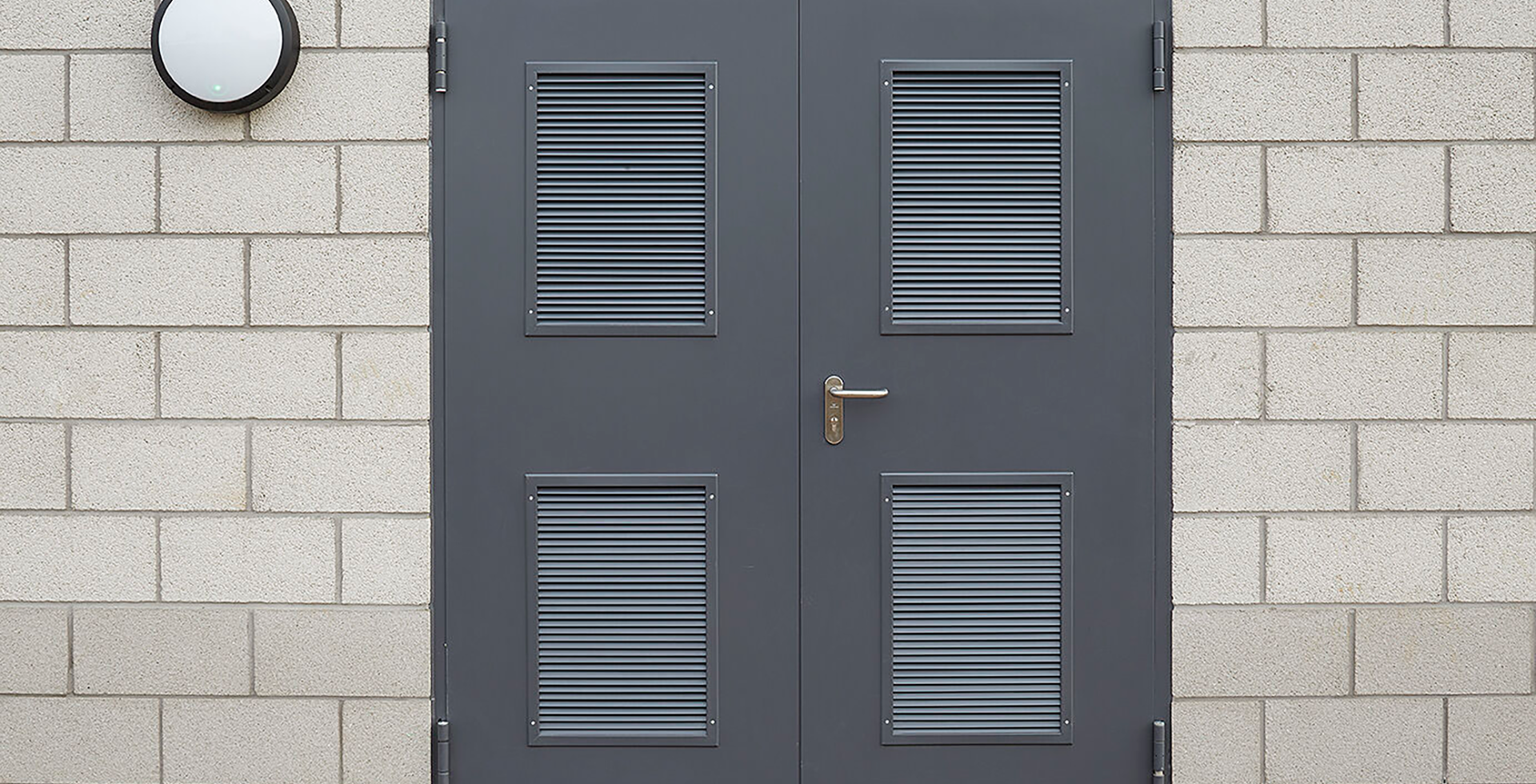

Louvred Steel Door

Home / Our Doors / Steel Doors / Louvred Steel Door
Louvidor Logo Colour

The Louvidor range including doors and panels are the essential solution where security is critical and airflow is imperative. Our high quality fully louvred panels and doors are designed to protect and ventilate without compromising either function.

High performing, our louvres will allow for up to 50% free airflow through any given panel size. The Louvidor fully louvred door has attained the rigorous PAS 24 standard, and offers complete peace of mind for doors that are often tucked away and vulnerable to intruders.

  • Louvre mesh avaliable
  • Full and split louvred panels
  • Fully louvred door has attained PAS 24 standard
  • Frame constructed of 18GA galvanised steel and 22GA for louvre blades
Unique Range Features

10-14 day lead time
Fast quotes
Easy fit doors
Steel door expert advice

Download Tech Specs
Iso
Dhfjpg
Made in Britain Colour

Product Features

Height Icon
Height

Single - up to 2.96m
Double - up to 2.96m

Width Icon
Width

Single - up to 1.4m
Double - up to 2.7m

I5
Leaf Thickness

44mm deep leaf skin

I7
Air permeability

50% free area
30-36% when using insect mesh

I7
Louvres

Blades pitched at 35.8° from the vertical
Reduced airflow if PAS 24 version

Further information

Features
Videos
Downloads

Application
Suitable for use in areas that need consistent, high levels of ventilation, including plant and boiler rooms, computer rooms, store rooms, manufacturing and leisure facilities.

Construction
Frame consists of corrosion resistant 18GA galvanised steel, louvre blades 22GA galvanised steel. Bird and insect mesh available. 50% free air flow in standard configuration, 36% with insect mesh. Fully louvred aluminium doorsets on request.

Finish
Supplied inclusive of a powder coated finish in a standard colour. Full range of RAL and BS colours available including metallics and pearlescent.

Louvre door panel standard sizes
305 x 305mm // 305 x 1524mm // 457 x 457mm
457 x 762mm // 457 x 1524mm // 610 x 610mm
610 x 914mm // 610 x 1524mm // 508 x 508mm
610 x 457mm - Custom sizes also available

Side, over panels and walls
Louvred side and over panels are available, including removable and hinged solutions.

Single Door Installation

Single Door Installation

This video contains detailed, step-by-step instructions for the safe installation of a Strongdor Steeldor single door-set. Please pay particular attention to the safety instructions.

Double Door Installation

Double Door Installation

This video contains detailed, step-by-step instructions for the safe installation of a Strongdor Steeldor double door-set. Please pay particular attention to the safety instructions.

Touching Up Paintwork

Touching up Paintwork

A demonstration of how to sue the touch up kit supplied with your steel door-set.

Strongdorlouvidortechspecthumbnail23

Fully Louvered Aluminium Door

View File

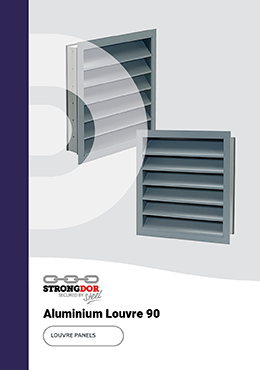

Strongdorlouvrepanel9023

Aluminium Louvre 90 Panel

View File

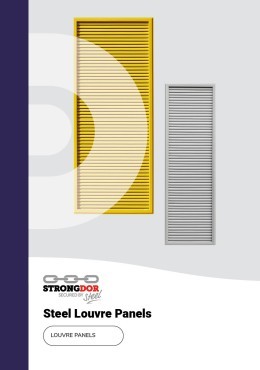

StrongdorLouvreStandard23

Standard Steel Louvre Panel

View File

Similar Products

Steel Personnel Door

Find out More

Steel Emergency Exit Door

Find out More

Any questions about this product?

Speak to an expert now

Telephone icon 01524 727000

Door Configurations

Personnel Louvre Steel Doors & Emergency Exit Louvre Steel Doors

Louvidor personnel configs
Louvidor Emergency Exit Configs

Over 150 colours available

View Colour Options

You might be interested in

Blue personnel steel door

Steel Personnel Door

Steeldor single and double personnel door-sets are designed for internal and external use to enable entry and exit. Each is built to order, individually constructed with a choice of hardware, frame, threshold and panel options, including louvre, vision, over and side panels.

View Door
Blue Door Icon

Thermal and Fire Rated Steel Door

Our Firedor Thermal has an exceptionally low U-value as low as 1.5 W/m2K and fire rating up to E60 and EI20.

View Door
Steeldor Emergency Exit

Steel Emergency Exit Door

Steeldor emergency exit doors can be configured as either single, double or leaf and a half steel door-sets. Our bespoke steel doors can be made to meet your specification and have superior security features.

View Door

Related Articles

Clear Opening Mobile

What is the Clear Opening Width and how do I work it out?

The clear opening width is the size of the gap any persons/objects can pass through freely when the door is opened to its full potential (most doors will usually only open to a 90-degree angle).

View Article
Riverside Enterprise Park Lincoln3

What is a U-Value and why does it matter for steel doors?

A u-value measures how efficiently a building element reduces heat loss.

View Article
Strongdor Made in Britain Listing

Strongdor celebrates being approved for Made in Britain

Strongdor has been accredited as a member of Made in Britain. Strongdor’s adoption of the official, protected mark will help buyers recognise its products as high quality, innovative and British-made.

View Article

Frequently Asked Questions

Do Strongdor offer a site measuring or an installation service?

No, Strongdor are a supply only manufacturer and therefore unfortunately don't offer site surveys or installation. However we can recommend local installers in your area from our Doorfit Network, who will be happy to help.

Complete our quotation request form, mention you are looking for installation and we will put you in touch!

Who is responsible for ensuring the sales quotation meets the specification and building regulations, including location and method of installation?

It is the customer’s responsibility to ensure all details within the sales quotation / sales order meet the exact specification and / or original enquiry and are compliant with current building regulations including location and method of installation.

We are here to help and advise only and cannot accept responsibility for discrepancies after the order is confirmed.
