Steel Emergency Exit Door

Home / Our Doors / Steel Doors / Steel Emergency Exit Door
Steeldor logo

Steeldor emergency exit doors can be configured as either single, double or leaf and a half steel door-sets. Our bespoke steel doors can be made to meet your specification and have superior security features such as an integrated astragal and dog bolt hinges.

A low-level part M compliant threshold even comes as standard and each steel door is built to order, it comes with a choice of hardware, frame, threshold and panel options including louvre, vision, over and side panels

  • Range of panic exit hardware options
  • Over 150 colours as standard
  • Expandable sides as standard
Unique Range Features

10-14 day lead time
Fast quotes
Easy fit doors
Steel door expert advice

Download Tech Specs
C e logo
Made in Britain Colour

Product Features

Height

Single - up to 2.96m
Double - up to 2.96m

Width

Single - up to 1.4m
Double - up to 2.7m

Leaf thickness

45mm deep leaf skin

Air permeability

EN1026:2000 to class 4 – 600Pa (113kmh) test pressure

Water tightness

EN1027:2000 to 150Pa for outward opening and 100Pa for inward

Resistance to wind load

EN12211:2000 to 1200Pa (Class A3) 98 mph

Weather tightness

BS 6375: Part 1: 2009 (test to EN1026:2000, EN1027:2000, EN12211:2000) to 1200 exposure rating

Further information

Features
Drawings
Videos
Downloads

Rebate frame
 Typical door configuration consists of the standard rebate frame assembly, for either single or double door-sets. Made from lightweight, high tensile ‘Rustec’ steel and powder coat finish, it also has an “Adjust-2-Fit” side expander system that offers 6 adjustable fixing positions. Various frame depths and styles are available - including double rebate frames (see frame specification sheet). Manufactured from 1.6 mm thick ‘Rustec’ steel. Single rebate 104mm wide frame with an additional rebate for the flush lip. A minimum of six fully adjustable fixing points are provided to each jamb - extra fixings available on request. Unique ‘Adjust-2-fit’ side channels with each frame.

Leaf
44mm door leaf thickness, fitted with a flush lipped astragal for added security. Comprising of 2 x 1.2mm ‘Rustec’ steel sheets, the leaf is internally bonded with a dutch fold stitch welded system providing greater stability and protection against de-lamination. 42mm thick ‘Hexatex’ core or upgrade to Rockwool insulated core. Industrial door threshold - 96mm (See Fig. 3) Standard aluminium threshold is part M compliant and is fitted with a neoprene seal for outward opening door-sets.

Weight
31kg/m2 with honeycomb core.

Door ironmongery
BS 7352 Grade 13 stainless steel, twin bearing template drilled butt hinges with integral high-security dog bolts are fitted as standard with CE marking. Other hardware on request.

Finish
Supplied inclusive of a powder-coated finish in a standard colour. Full range of RAL and BS colours available. Marine Grade finish as an option in salt-laden coastal or high chlorination locations.

Seals
Strongdor self-adhesive P-seal provided as standard.

Side panels and over panels (optional)
Solid, glazed and louvred side and over panels

96mm Steel door threshold

View File

Steeldor cross section diagram

View File

Steeldor double cross section diagram

View File
Single Door Installation

Single Door Installation

This video contains detailed, step-by-step instructions for the safe installation of a Strongdor Steeldor single door-set. Please pay particular attention to the safety instructions.

Double Door Installation

Double Door Installation

This video contains detailed, step-by-step instructions for the safe installation of a Strongdor Steeldor double door-set. Please pay particular attention to the safety instructions.

Touching Up Paintwork

Touching up Paintwork

A demonstration of how to sue the touch up kit supplied with your steel door-set.

Trimming Expander Panels

Trimming the Expander Panels

Instructions on how to trim the side expander panels, for when the aperture is too tight.

Steeldor Single Ee Hex Ts 21

Steeldor Single Emergency Exit

View File
Steeldor Double Ee Hex Ts

Steeldor Double Emergency Exit

View File

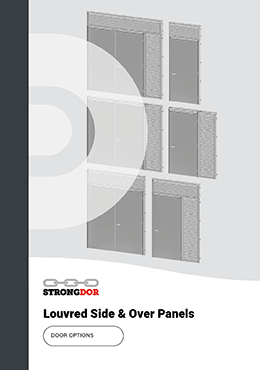

Louvre Panel Options 22 Thubmnail

Louvre Panel Options

View File
Strongdor Over And Side Panel Options Thumbnail

Over and Side Panel Options

View File

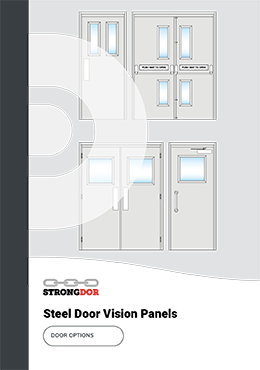

Strongdor Steel Door Vision Panels 22 Thumbnail

Steel Door Vision Panel Options

View File
Strongdor Standard Colours 22 Thumbnail

Standard Colours & Coatings

View File
Installationf 33

Door Fitting Guide

View File
