Steel Personnel Door

Home / Our Doors / Steel Doors / Steel Personnel Door
Steeldor logo

Steeldor door-sets are designed for internal and external use to enable entry and exit. Each is built to order, individually constructed with a choice of hardware, frame, threshold and panel options, including louvre, vision, over and side panels.

Fully bespoke, Steeldor can be made to meet specification and have superior security features such as astragal and dog bolt hinges. A low level Part M Compliant threshold comes as standard. Easy to install, and manufactured from corrosion resistant high-tensile steel, each door-set comes complete with powder coating and an appropriate installation kit. Popular with contractors and specifiers alike, this all-rounder comes with a range of features and options that can be specified to order.

  • Expandable sides as standard
  • Over 150 colours as standard
  • Huge range of hardware options
Unique Range Features

10-14 day lead time
Fast quotes
Easy fit doors
Steel door expert advice

Download Tech Specs
Iso
Dhfjpg
Made in Britain Colour

Product Features

Height

Single - up to 2.96m
Double - up to 2.96m

Width

Single - up to 1.4m
Double - up to 2.7m

Leaf thickness

45mm deep leaf skin

Air permeability

EN1026:2000 to class 4 – 600Pa (113kmh) test pressure

Water tightness

EN1027:2000 to 150Pa for outward opening and 100Pa for inward

Resistance to wind load

EN12211:2000 to 1200Pa (Class A3) 98 mph

Weather tightness

BS 6375: Part 1: 2009 (test to EN1026:2000, EN1027:2000, EN12211:2000) to 1200 exposure rating

Further information

Features
Drawings
Videos
Downloads

Rebate frame
Typical door configuration consists standard rebate frame assembly, for either single or double door-sets. Made from lightweight, high tensile ‘Rustec’ steel and powder coat finish, it also has an “Adjust-2-Fit” side expander system that offers 6 adjustable fixing positions. Various frame depths and styles available - including double rebate frames (see frame specification sheet). Manufactured from 1.6 mm thick ‘Rustec’ steel. Single rebate 104mm wide frame with an additional rebate for flush lip. A minimum of six fully adjustable fixing points are provided to each jamb - extra fixings available on request. Unique ‘Adjust-2-fit’ side channels with each frame.

Leaf
45mm door leaf thickness, fitted with a flush lipped astragal for added security. Comprising of 2 x 1.2mm ‘Rustec’ steel sheets, the leaf is internally bonded with a dutch fold stitch welded system providing greater stability and protection against de-lamination. 42mm thick ‘Hexatex’ core or upgrade to Rockwool insulated core. Industrial door threshold - 96mm. The standard aluminium threshold is DDA approved and is fitted with a neoprene seal for outward opening door-sets.

Weight
31kg/m2 with honeycomb core.

Door ironmongery
BS 7352 Grade 13 stainless steel, twin bearing template drilled butt hinges with integral high-security dog bolts are fitted as standard with CE marking. Other hardware on request.

Finish
Supplied inclusive of a powder-coated finish in a standard colour. Full range of RAL and BS colours available. Marine Grade finish as an option in salt-laden coastal or high chlorination locations.

Seals
Strongdor self-adhesive P-seal provided as standard.

Side panels and over panels (optional)
Solid, glazed and louvred side and over panels

96mm Door threshold drawing

View File

Steeldor cross section diagram

View File

Steeldor double cross section diagram

View File
Single Door Installation

Single Door Installation

This video contains detailed, step-by-step instructions for the safe installation of a Strongdor Steeldor single door-set. Please pay particular attention to the safety instructions.

Double Door Installation

Double Door Installation

This video contains detailed, step-by-step instructions for the safe installation of a Strongdor Steeldor double door-set. Please pay particular attention to the safety instructions.

Touching Up Paintwork

Touching up Paintwork

A demonstration of how to sue the touch up kit supplied with your steel door-set.

Trimming Expander Panels

Trimming the Expander Panels

Instructions on how to trim the side expander panels, for when the aperture is too tight.

Steeldor Single Pd Hex Ts 21

Steeldor Single Personnel Door

View File
Steeldor Double Pd Hex Ts 21

Steeldor Double Personnel Door

View File
Louvre Panel

Louvre Panel Options

View File
Vision Panel

Steel Door Vision Panel Options

View File
Standard Colours

Standard Colours & Coatings

View File
Installationf 33

Door Fitting Guide

View File

Similar Products

Steel Emergency Exit Door

Find out More

Louvred Steel Door

Find out More

Thermally Rated Steel Door

Find out More

Any questions about this product?

Speak to an expert now

Telephone icon 01524 727000

Light & Visibility

Glazed Vision Panels

Our vision panels are produced in various panel formats and sizes, some of which can be fire rated, we offer a choice of glazing options depending on the door's application.

Visibility panels

Air Circulation

Louvre Panels

Designed to increase airflow in areas that need efficient ventilation, louvred door, side, over panels and walls offer a flexible solution without compromising security or structural integrity.

Airflow panels

Door Configurations

Personnel Steel Doors

Personnel configs

Over 150 colours available

View Colour Options

You might be interested in

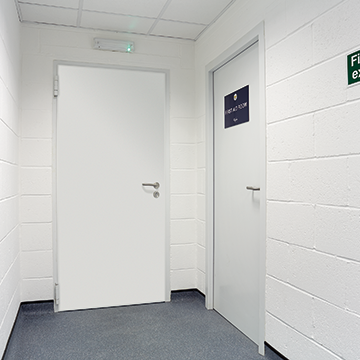

White thermal steel door

Thermal and Fire Rated Steel Door

Made from galvanised sheet steel, Climador comes in double or single leaf configurations and is ideally suited to internal or external applications for commercial, industrial, public or residential projects. Up to 1.4 U value and FR up to EI60.

View Door

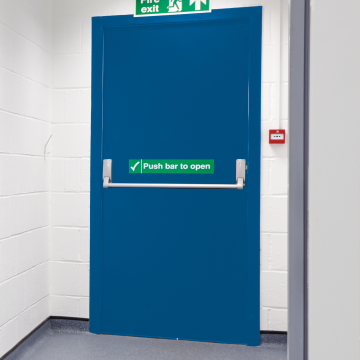

Blue steel fire exit door
